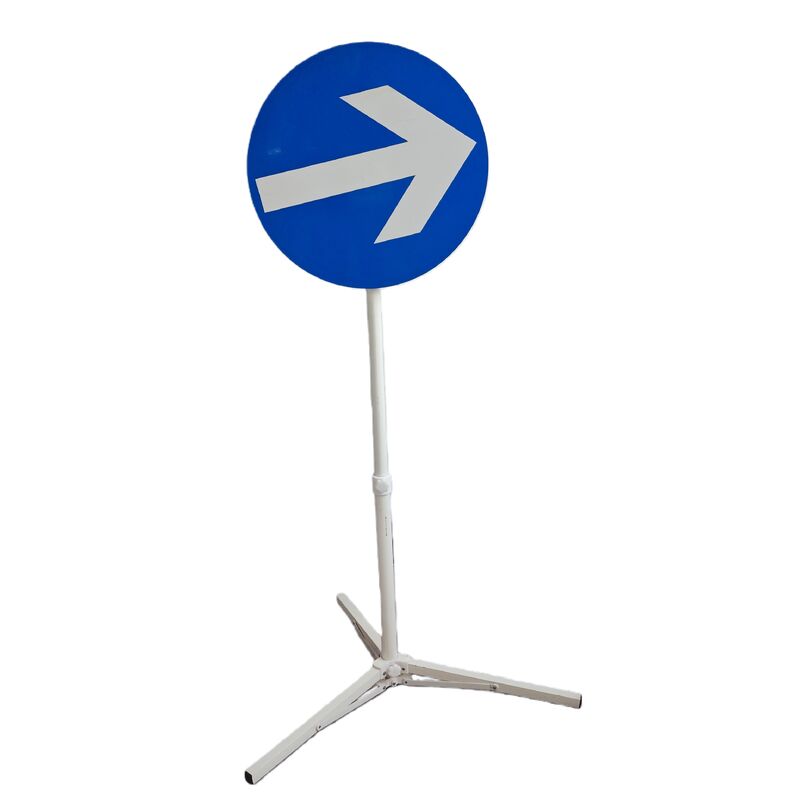

The Clock-Style Arrow Board is a manually rotatable, multi-directional reflective traffic sign designed for road construction, temporary traffic control, and intersection guidance. Its core value: one sign replaces multiple fixed-direction signs, flexibly adapting to changing road conditions.
| Parameter | Value |
|---|---|
| Panel diameter | 500 mm |
| Height range | 1 - 2 m (adjustable) |
| Weight (excluding base) | 3 kg |
| Number of directions | 8 |
| Panel material | Aluminum |
| Reflective film | 3M engineering grade (upgradable) |
| Base types | Tripod (foldable) / Plastic water-filled |
| Color | Blue/Red + White |
Working PrincipleA manual turntable with 8 positioning holes is located behind the arrow board
The user rotates the panel by hand; each hole (45°) changes the arrow direction
No tools required – direction change can be done with bare hands
| Component | Material/Specification | Description |
|---|---|---|
| Panel | Aluminum, 500mm diameter | Printed arrow pattern with 3M reflective film |
| Turntable | Metal/Engineering plastic | 8-position holes, manual rotation |
| Support pole | Metal, 1-2m adjustable | With height adjustment knob |
| Base | Tripod or water-filled | Detachable, optional |
| Reflective film | 3M engineering grade (upgradable) | Blue/Red background + White arrow |
| Function | Description |
|---|---|
| Direction indication | 8 directions, full coverage |
| Height adjustment | 1-2m stepless adjustment for different lanes or visibility |
| Nighttime reflection | 3M reflective film, clearly visible from distance under headlights |
| Quick deployment | Detachable panel and bracket; one person can carry and install |
| Base options | Choose stability (tripod) or portability (water-filled) based on scenario |
Assembly: Insert support pole into base, tighten knob; attach panel to pole top
Height adjustment: Loosen height knob, extend to desired height, tighten
Direction adjustment: Hold panel edge, rotate clockwise/counterclockwise to target direction; "click" sound indicates position locked
Storage: Detach panel from bracket; fold base or empty water; store in vehicle trunk
| Scenario | Recommended Configuration | Reason |
|---|---|---|
| Short-term/temporary construction | Water-filled base + 1.5m + 3M film | Frequent moves; water-filled base is portable; 1.5m height sufficient |
| Long-term/nighttime operation | Tripod base + 2m + high-grade film | High stability required; 2m offers longer visibility; high-grade film for night safety |
| Multi-directional intersection guidance | Either base + 1.5-2m adjustable + 3M film | 8-direction adjustment allows 1-2 boards to cover multiple directions |
| Aspect | Clock-Style Arrow Board | Ordinary Arrow Board |
|---|---|---|
| Number of directions | 8 | 1-2 |
| Direction change | Manual rotation, no panel replacement | Requires panel replacement or new purchase |
| Height adjustment | 1-2m adjustable | Usually fixed |
| Base | Two options available | Single type |
| Storage | Detachable, foldable | Often integrated |
| Single board coverage | Can cover multiple directions | Covers only one direction |
Q1: What is this product?
A1: A 3M reflective film multidirectional adjustable reflective traffic sign.
Q2: Where is it made?
A2: China, with strict quality control.
Q3: How many directions can it point?
A3: 8 directions.
Q4: How do you adjust the direction?
A4: There is a manual turntable on the back. Just turn it by hand. No tools needed.
Q5: What brand of reflective film does it use?
A5: 3M.
Q6: Is it visible at night?
A6: Yes, it lights up brightly when car headlights hit it.
Q7: Where is it used?
A7: Road construction, traffic diversion, nighttime operations, intersection guidance.
Q8: What's the difference from a regular arrow sign?
A8: A regular sign has a fixed direction. This one can rotate to 8 directions without changing the sign.
